无需断开电路，安全夹测直流、交流、脉冲电流
分芯霍尔效应电流传感器采用可开合磁芯结构，基于霍尔效应原理，只需夹在载流导线上即可实时测量电流。它解决了传统穿心式传感器需要断线安装的痛点，广泛用于变频器、光伏逆变器、电动汽车、电源及工业自动化领域。提供开环/闭环、多种输出类型及量程（50A~5000A+），满足不同精度与成本要求。
| 型号 | 原边额定电流有效值(A) | 测量范围(A) | 供电电压(V) | 副边输出 | 精度(%) | 输出带宽(kHz) | 使用温度(°C) | 铜排(mm) | PCB | 其它 |
|---|---|---|---|---|---|---|---|---|---|---|

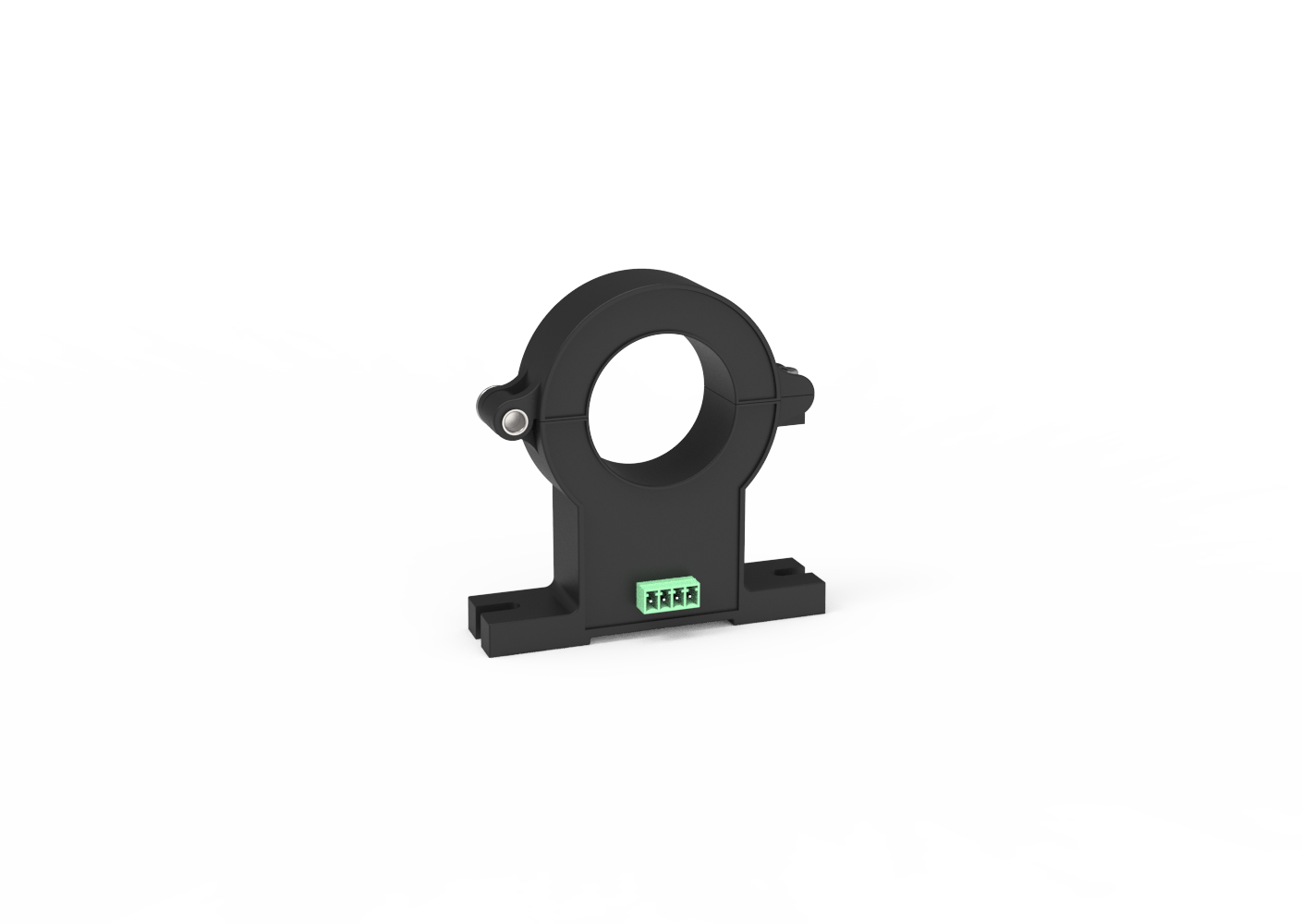

| HK1A 200 H00 | 200 | ±240 | 12 | 4...20mA | ±1.0 | DC | -25~85 | Ø41.3 | 2EDGV-3.81-4P | |

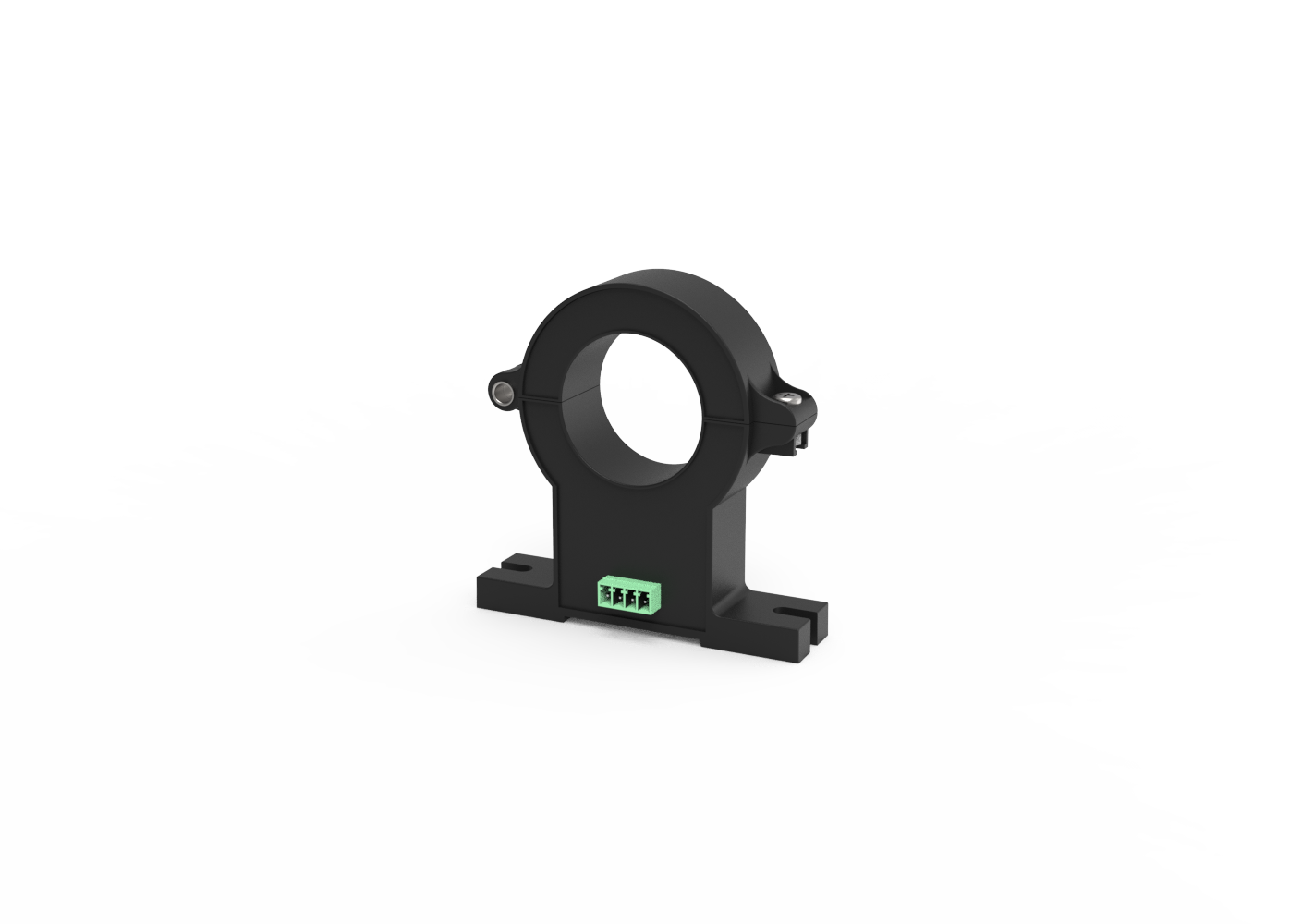

| HK1A 400 H00 | 400 | ±480 | 12 | 4...20mA | ±1.0 | DC | -25~85 | Ø41.3 | 2EDGV-3.81-4P | |
| HK1V 1000 H00 | 1000 | ±2000 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 1000 H00
|
||||||||||
| HK1V 1000 H01 | 1000 | ±2000 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 1000 H01
|
||||||||||
| HK1V 200 H00 | 200 | ±400 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 200 H00
|
||||||||||
| HK1V 200 H01 | 200 | ±400 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 200 H01
|
||||||||||
| HK1V 2000 H00 | 2000 | ±4000 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 2000 H00
|
||||||||||
| HK1V 2000 H01 | 2000 | ±4000 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 2000 H01
|
||||||||||
| HK1V 400 H00 | 400 | ±800 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 400 H00
|
||||||||||
| HK1V 400 H01 | 400 | ±800 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 400 H01
|
||||||||||
| HK1V 600 H00 | 600 | ±1200 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 600 H00
|
||||||||||
| HK1V 600 H01 | 600 | ±1200 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |

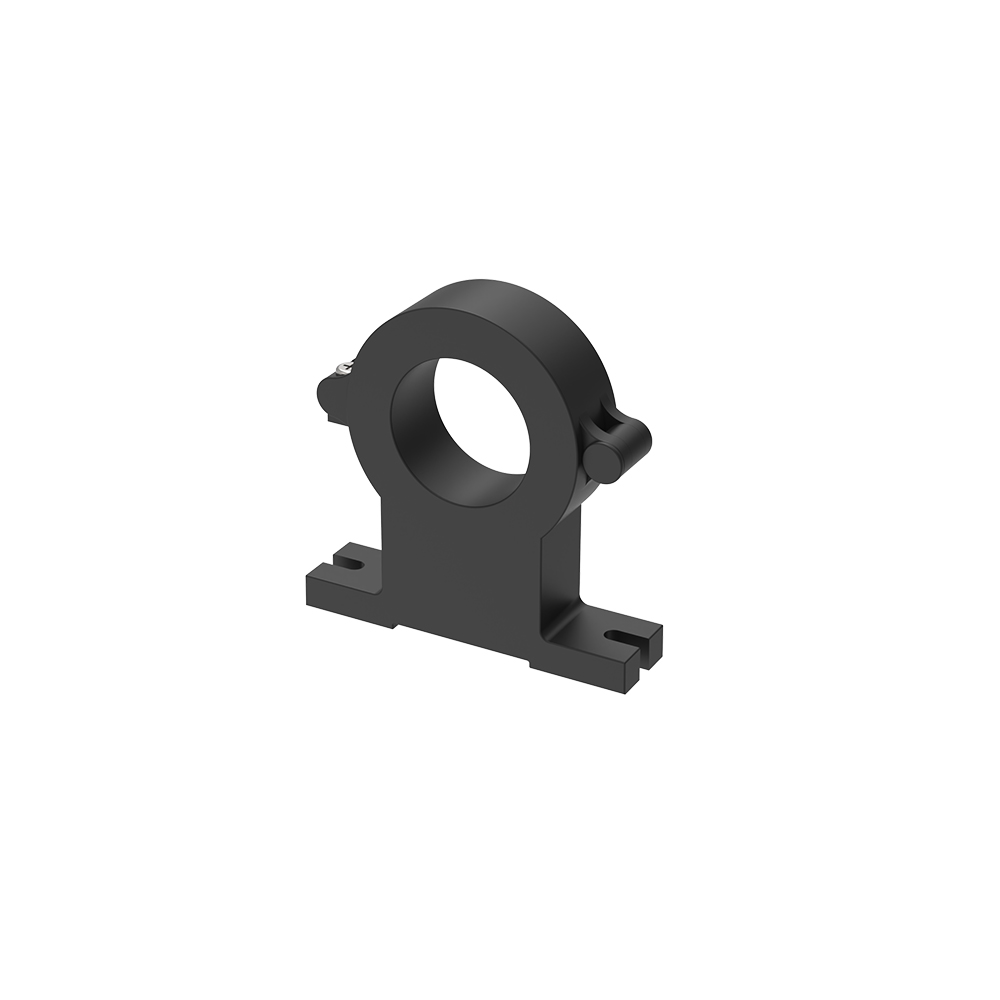

 HK1V 600 H01
|
||||||||||
| HK1V 800 H00 | 800 | ±1600 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 800 H00
|
||||||||||
| HK1V 800 H01 | 800 | ±1600 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 800 H01
|
||||||||||
| HK3A 100 H20 | ±100 | ±100 | 12 | 4...20mA | ±1.0 | DC | -25~85 | Ø21.6 | KF2EDGV-3.81-4P | |
 HK3A 100 H20
|
||||||||||
| HK3A 50 H20 | ±50 | ±50 | 12 | 4...20mA | ±1.0 | DC | -25~85 | Ø21.6 | KF2EDGV-3.81-4P | |

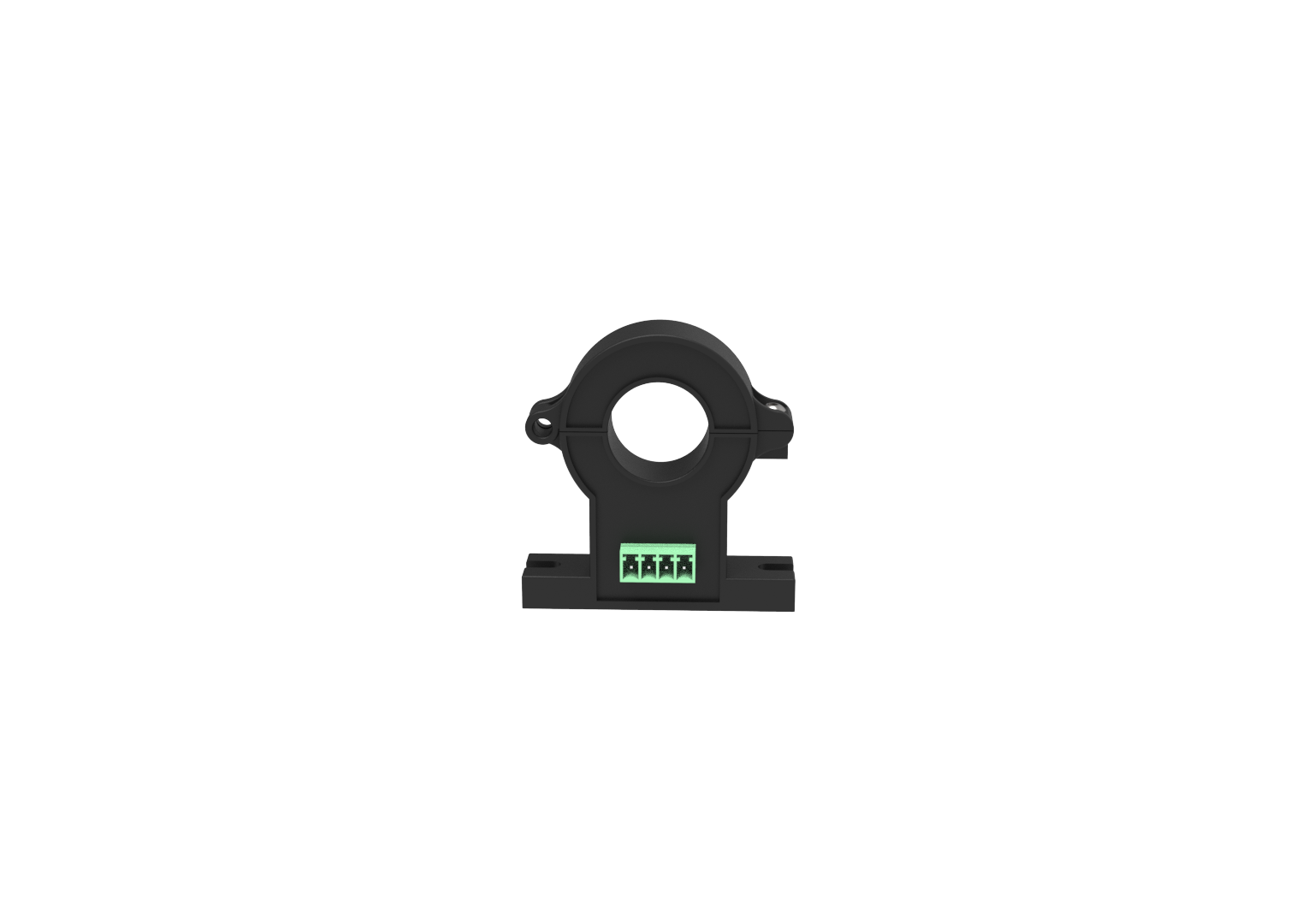

 HK3A 50 H20基于霍尔原理的开环电流传感器 原边和副边之间绝缘 原材料符合UL 94-V0 没有插入损耗 输出12±8mA 12V（DC）供电 比例输出 执行标准: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 产品详情 |
||||||||||
| HK3V 100 H20 | ±100 | ±200 | ±12...15 | ±4V | ±1.0 | DC | -25~85 | Ø21.6 | KF2EDGV-3.81-4P | |

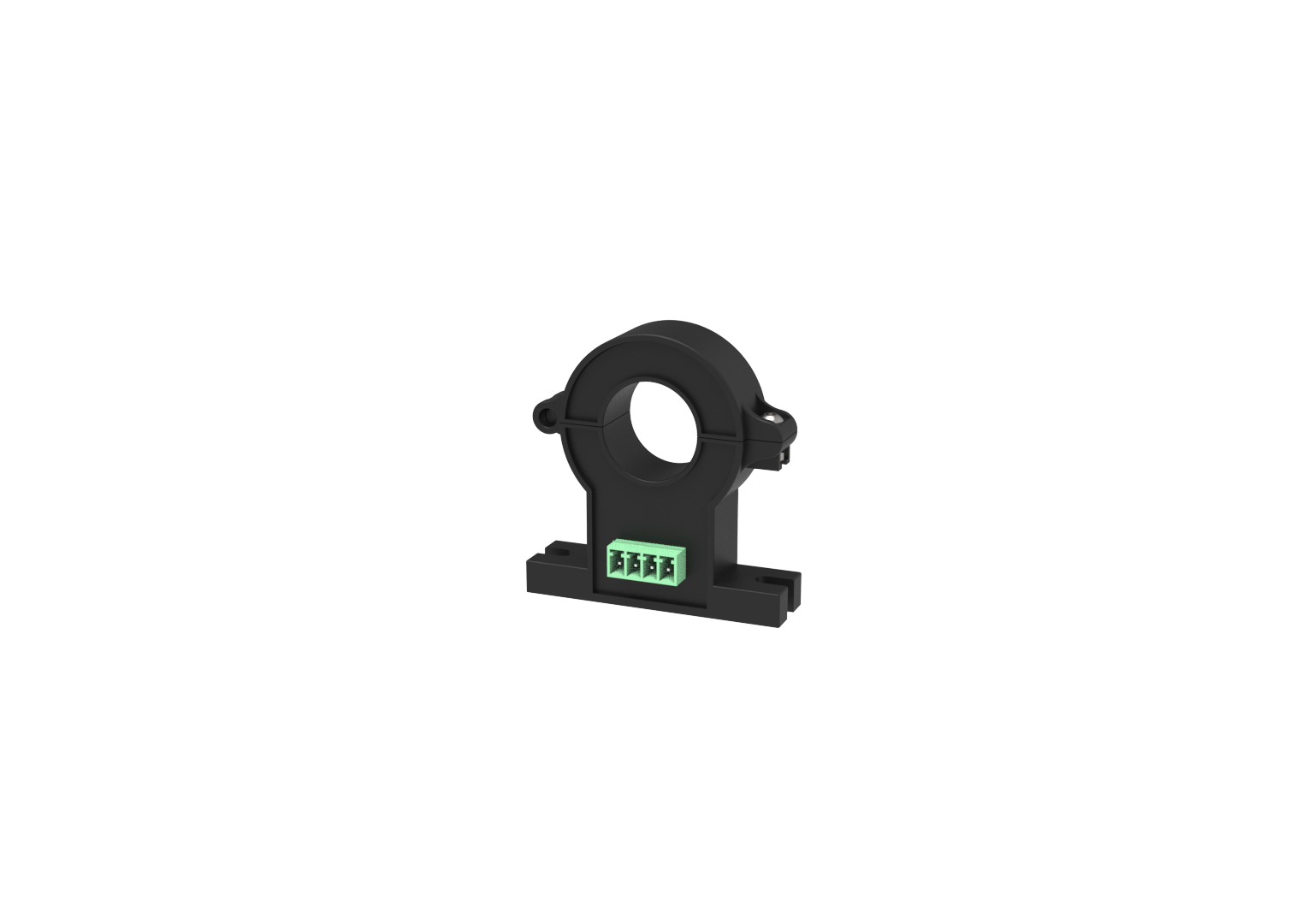

 HK3V 100 H20
|
||||||||||
| HK3V 50 H20 | ±50 | ±100 | ±12...15 | ±4V | ±1.0 | DC | -25~85 | Ø21.6 | KF2EDGV-3.81-4P | |
 HK3V 50 H20
|
||||||||||
| HK4V 2000 H00 | 2000 | ±4000 | ±15 | 4V | ±1.0 | DC...40 | -40~85 | 112mm x 30mm | 2EDG-4P-3.81 | |
 HK4V 2000 H00
|
||||||||||
| HK4V 3000 H00 | 3000 | ±5500 | ±15 | 4V | ±1.0 | DC...40 | -40~85 | 112mm×30mm | 2EDG-4P-3.81 | |

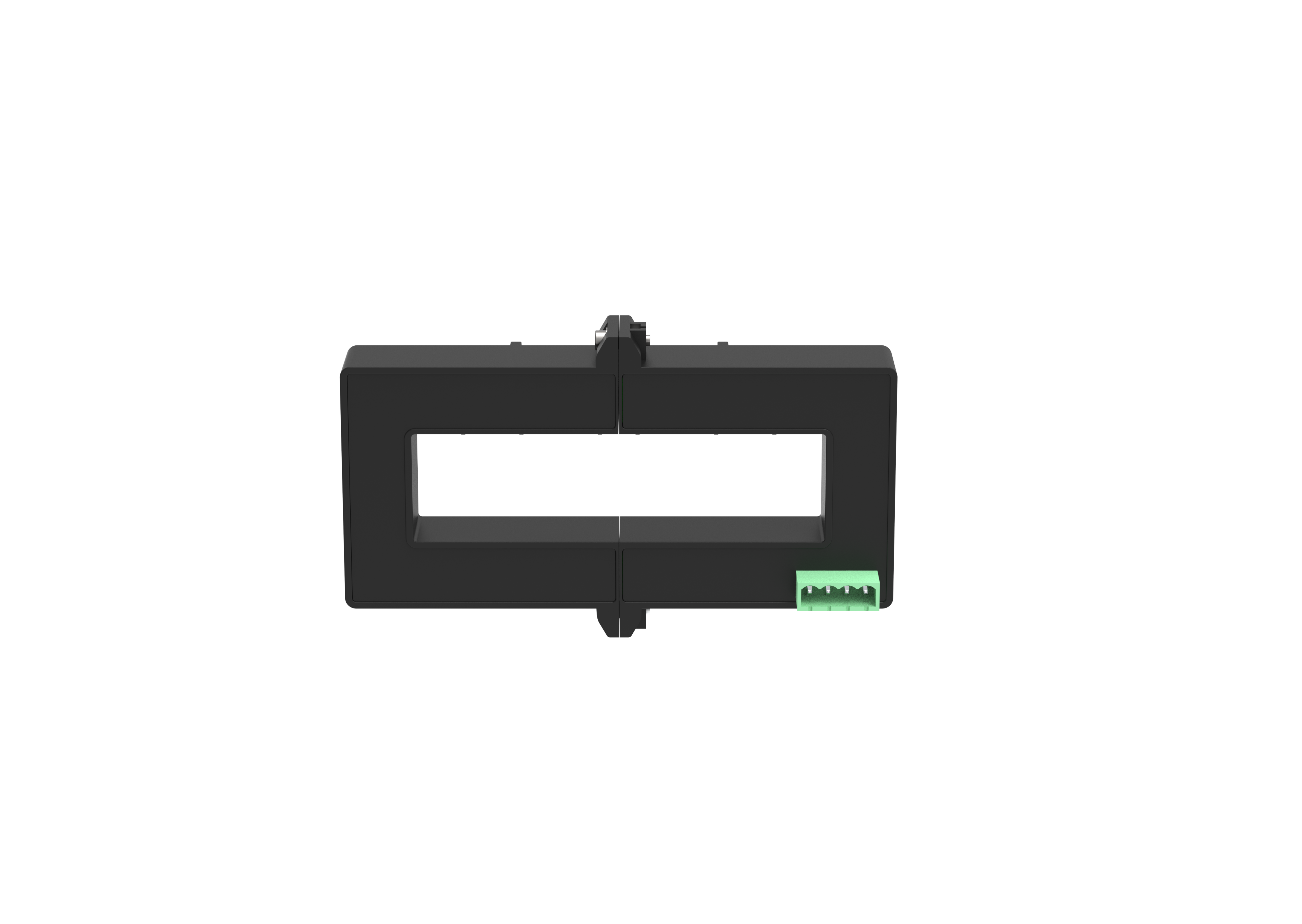

 HK4V 3000 H00
|
||||||||||
| HK4V 5000 H00 | 5000 | ±6000 | ±15 | 5V | ±1.0 | DC...40 | -40~85 | 112mm x 30mm | 2EDG-4P-3.81 | |
 HK4V 5000 H00
|
||||||||||
| HK5V 1000 H20 | ±1000 | ±1500 | ±12...15 | ±4V | ±1.0 | 20 | -25~85 | 16mm×64mm | 2EDG-4P-3.81 | |
 HK5V 1000 H20
|
||||||||||
| HK5V 200 H20 | ±200 | ±300 | ±12...15 | ±4V | ±1.0 | 20 | -25~85 | 16mm×64mm | 2EDG-4P-3.81 | |
 HK5V 200 H20
产品详情 |
||||||||||
| HK5V 400 H20 | ±400 | ±600 | ±12...15 | ±4V | ±1.0 | 20 | -25~85 | 16mm×64mm | 2EDG-4P-3.81 | |

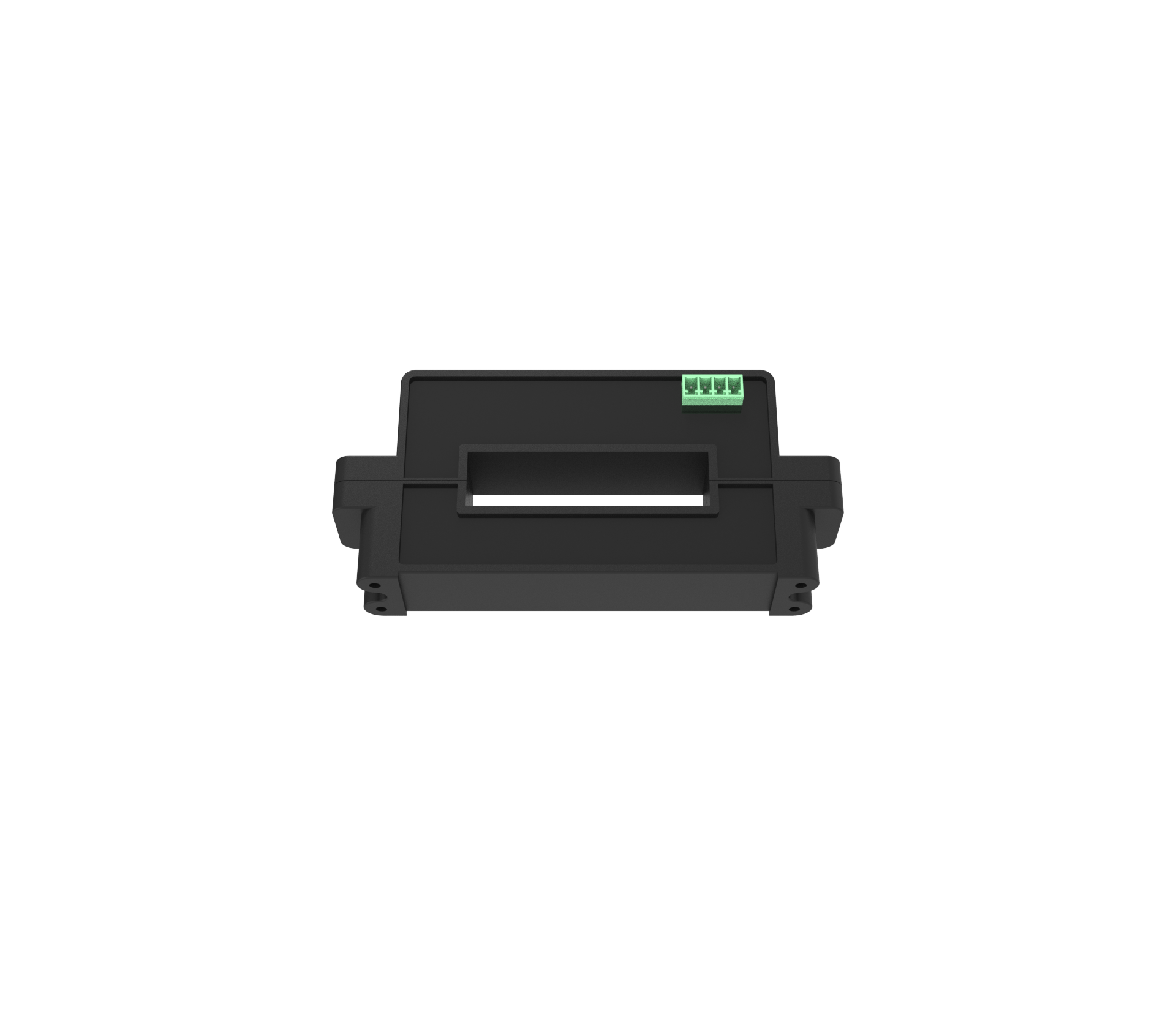

 HK5V 400 H20
|
||||||||||
| HK5V 600 H20 | ±600 | ±900 | ±12...15 | ±4V | ±1.0 | 20 | -25~85 | 16mm×64mm | 2EDG-4P-3.81 | |
 HK5V 600 H20
|
||||||||||
| HK5V 800 H20 | ±800 | ±1200 | ±12...15 | ±4V | ±1.0 | 20 | -25~85 | 16mm×64mm | 2EDG-4P-3.81 | |
 HK5V 800 H20
|
||||||||||
