| 型号 | 原边额定电流有效值(A) | 测量范围(A) | 供电电压(V) | 副边输出 | 精度(%) | 输出带宽 | 工作温度(°C) | 铜排(mm) | 电路板 | 其它 |
|---|---|---|---|---|---|---|---|---|---|---|
| TR3V 0.005 P01 | 5mA | 8mA | ±12...15V | 3.3V | ±0.5 | 50 | -40~85 | Φ12mm | + | |
 TR3V 0.005 P01
|
||||||||||
| TR3V 0.01 P01 | 10mA | 15mA | ±12...15V | 3.3V | ±0.5 | 50 | -40~85 | Φ12mm | + | |
 TR3V 0.01 P01
|
||||||||||
| TR3V 0.05 P01 | 50mA | 75mA | ±12...15 | 3.3V | ±0.5 | 50 | -40~85 | Φ12mm | + | |
 TR3V 0.05 P01
|
||||||||||
| TR3V 0.005 P02 | 5mA | 8mA | ±12...15 | 5V | ±0.5 | 50 | -40~85 | Φ12mm | + | |
 TR3V 0.005 P02
|
||||||||||
| TR3V 0.01 P02 | 10mA | 15mA | ±12...15 | 5V | ±0.5 | 50 | -40~85 | Φ12mm | + | |
 TR3V 0.01 P02
|
||||||||||
| TR3V 0.05 P02 | 50mA | 80mA | ±12...15 | 5V | ±0.5 | 50 | -40~85 | Φ12mm | + | |
 TR3V 0.05 P02
|
||||||||||
| TR3V 0.20 P02 | 200mA | 250mA | ±12...15 | 5V | ±0.5 | 50 | -40~85 | Φ12mm | + | |
 TR3V 0.20 P02
|
||||||||||

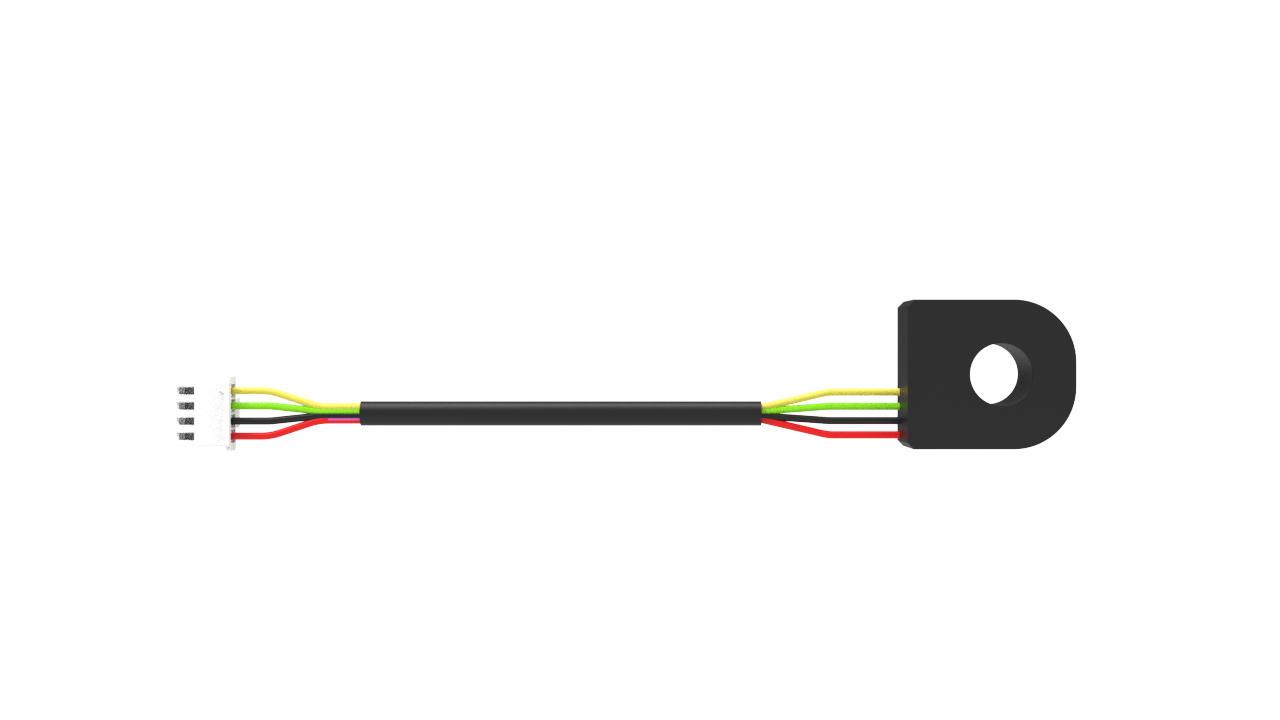

| FR1D 6 C02 | 6mA | - | 4.75～5.25 | - | - | - | -40℃～85℃ | Ø10.0 | A2512H-4P | |
 FR1D 6 C02FR1D 6 C02是芯森电子推出的一款剩余电流传感器，包含 B 剩余电流检测电路、能检测多种漏电流波形，具有功耗低、精度高、线性度 好、抗干扰能力强、温度漂移小、隔离式电流检测等优点。 产品详情 |
||||||||||
| CSMD1&TR3A 6 C00 | 6mA | - | 5±0.25VDC | - | - | - | -40℃～85℃ | Ø10.0 | A2512H-4P | |
